ELECTRIC CORE DRILL RENTALS
ELECTRIC CORE DRILL RENTALS NEAR ME
Husqvarna DM 230 ELECTRIC CORE DRILL
Handheld electric core drill with attractive design and functional ergonomics. The motor is designed with an ergonomic pistol grip giving you greater control. Handheld core drilling up to 4 in. or drilling with stand up to 6 in. Suitable for light applications such as ventilation, plumbing pipes and electrical sockets. DM 230 is an excellent choice for professionals as well as less experienced users.
- 15.4lbs Weight
- 2.5 hp Rated Input Power
- 3 in Drill Bit Diameter Handheld, MAX
- 6 in Drill Bit Diameter with Stand, MAX
AVAILABLE STAND ACCESSORY

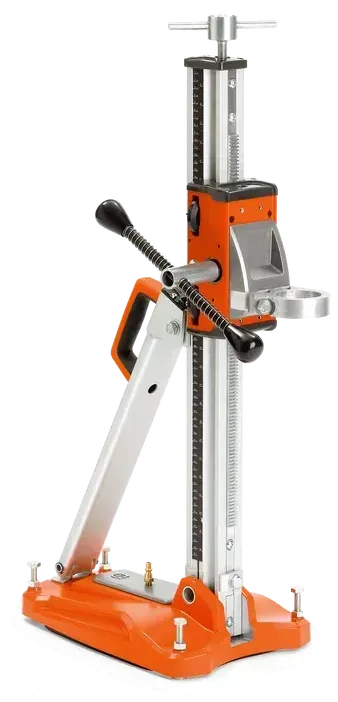

As a part of the Husqvarna drill stand family, the DS 150 is a versatile and lightweight drill stand. It has a com bined base plate for vacuum or anchoring. The collar on the carriage fits with Husqvarna’s smaller drill motors. The stand has a practical handle with a soft grip, which makes it easy and comfortable to transport.
- Angle drilling
- Straight and accurate drilling
- User-friendly base plate
- Channels, pipes and cables
- Horizontal drilling
- Vertical drilling
| HUSQVARNA DM 230 ELECTRIC CORE DRILL | |
|---|---|
| Rated input power | 2.5 hp |
| Frequency | 60 Hz |
| Voltage | 100-120 V |
| Phases | 1 ph |
| Power source | Corded |
| Drill bit diameter handheld, max | 3 in |
| Drill bit diameter with stand, max | 6 in |
| Recommended drill bit diameter, min | 0 in |
| Coolant | Wet |
| Number of gearbox speeds | 3 |
| Spindle speed unloaded gear 1 | 730 rpm |
| Spindle speed unloaded gear 2 | 1,700 rpm |
| Spindle speed unloaded gear 3 | 3,600 rpm |
| Water connector | G 1 / 4" |
| Water pressure, max | 116 psi |
| Mounting collar | 2.36 in |
| Spindle thread, inner | 5/8" 11 UNC |
| Spindle thread, outer | 1 1/4" 7 UNC |
| Product size length | 17.5 in |
| Product size width | 4.2 in |
| Product size height | 13.6" |
| Weight | 15.4 lbs |
| Sound power level, guaranteed (LWA) | 108 dB(A) |
| Sound power level, measured | 107 dB(A) |
| Sound pressure level at operators ear | 93 dB(A) |
Diamond M-1 Complete Core Rig W/20Amp Milwaukee 4096 Motor 450/900RPM
- Complete rig without vacuum pump
- 2-1/2” square column (mast) with black oxidized finish
- 6” wheels for easy mobility
- Dual switch/outlet control panel with amp meter (except for CB700 models with LED amp meter)
- Vacuum pump for quick mounting to flat surface without drilling an anchor hole (included with combination rig)
- 4 leveling screws on the base
- Up to 14” bit capacity with one spacer block
- Slide handle allows for drilling in tight areas
- Combination base is a quick change over from vacuum to anchor base
- Ceiling jack helps keep the rig in place as a backup for anchoring or vacuuming the base down (used with a brace piece-2 x 4 or other material)
| DIAMOND PRODUCTS M-1 COMPLETE CORE RIG | |
|---|---|
| Amps | 20 |
| Power Source | Corded |
| Weight | 24.0 lbs |
| No Load RPM | 450-900 |
| Max HP | 4.8 |
| Spindle | 1-1/4"-7 |
| Motor Protection | Clutch |
| Plug Type | L5-20P |
| Suggested Dia in Med Aggregate | 6"-10" / 2"-6" |
| Voltage | 120V |
AVAILABLE BITS FOR RENT
