BUILD THE MOST SOLID FOUNDATION WITH PLATE COMPACTORS FROM EASY RENT ALL. WE HAVE NAME BRAND PLATE COMPACTORS FOR SUB BASE AND ASPHALT ON DRIVEWAYS, REPAIR JOBS, PARKING LOTS & MORE. UTILIZE OUR PLATE COMPACTORS FOR SOIL, GRAVEL, SAND, STONE DUST & MORE. FOR LOCAL PLATE COMPACTORS RENTALS IN MAINE, WE MAKE IT EASY TO FIND THE RIGHT TOOLS FOR EVERY JOB.
Multiquip MVC82VHW | Multiquip MVC90H | Multiquip MVB85H | Wacker Neuson BPU4045
CLICK ON THE MODEL TO VIEW
PLATE COMPACTOR RENTAL NEAR ME
Recognized as the industry standard for compacting granular soils and asphalt.
Reliable engine with Honda GX160 offering easy start-up and low oil shutdown for durability.
Cyclonic pre-cleaner captures most airborne contaminants for engine protection and extended service life.
Anti-vibration handle dramatically reduces operator fatigue and increases productivity.
Solid, high-strenght steel base plate for durability.
Tubular steel roll bar protects engine components and provides central lifting point.
Sealed belt cover keeps dirt and rocks out extending belt life.
Open base plate design makes for easier removal of dirt and rock build-up.
Cog-tooth belt drive enables longer life compared to conventional V-belts.
Front mounted exciter assembly allows for easy service access.
| MULTIQUIP MVC82VHW | |
|---|---|
| Unit Specifications | |
| Centrifugal Force | 3080 lbf |
| Exciter Speed | 5600 VPM |
| Plate Size | 17.7 x 22.4 in |
| 450 x 570 mm | |
| Max Forward Speed | |
| Per Min. | 72 ft |
| Fuel Consumption | |
| Per Hour | 0.31 gal |
| Water Tank Capacity | 11.5 qt |
| Dimensions & Weights | |
| Overall Length | 36 in |
| Overall Width | 17.7 in |
| Overall Height | 39.5 in |
| Shipping Dimensions | 33.5 x 18.5 x 27 in |
| 851 x 470 x 686 mm | |
| Operating Weight | 181 lb |
| Shipping Weight | 200 lb |
↓ SCROLL DOWN TO SEE MORE INFO ↓
PLATE COMPACTOR RENTAL NEAR ME
Recognized as the industry standard for compacting granular soils and asphalt.
Heavy-duty steel base plate-closed design, ribbed for extra strength.
Fitted with a 19.75 x 22 inch (502 x 560 mm) plate.
Durable steel water distribution system, reversible shock mounted handle.
Tubular steel roll bar cage protects engine components and provides a lifting point.
Double V-Belt Drive
Engine oil alarm, strong vibrator assembly.
| MULTIQUIP MVC90H | |
|---|---|
| Unit Specifications | |
| Centrifugal Force | 3420 lbf |
| Exciter Speed | 5800 VPM |
| Plate Size | 19.7 x 22 in |
| 50 x 56 mm | |
| Max Forward Speed | |
| Per Min. | 82 ft |
| Fuel Consumption | |
| Per Hour | 0.343 gal |
| Water Tank Capacity | 4 qt |
| Dimensions & Weights | |
| Overall Length | 23 in |
| Overall Width | 19.75 in |
| Overall Height | 45.25 in |
| Operating Weight | 194 lb |
↓ SCROLL DOWN TO SEE MORE INFO ↓
PLATE COMPACTOR RENTAL NEAR ME
Give interlocking pavers an even finish.
The machines' hard rubber rollers make it virtually impossible to chip corners, scratch, break or drag pavers.
Great for narrow areas and exterting compaction pressure alongside walls.
Toolless foldable handle allows for quick and easy loading into vans and trucks.
Rollers allow for easy pull back to compact on the spot.
Greatly improves productivity compared to standard plate compactors.
| MULTIQUIP MVB85H | |
|---|---|
| # of Rollers | 4 |
| Roller Diameter | 2.9 in |
| Centrifugal Force | 2270 lbf |
| Exciter Speed | 5600 VPM |
| Plate Size | 12.6 x 17.05 in
 |
| Per Min. | 82 ft |
| Overall Length | 35.04 in |
| Overall Width | 14.8 in |
| Overall Height | 36.14 in |
| Shipping Dimensions | 25 x 15 x 26 in
 |
| Operating Weight | 198 lb |
| Shipping Weight | 208 lb |
↓ SCROLL DOWN TO SEE MORE INFO ↓
PLATE COMPACTOR RENTAL NEAR ME

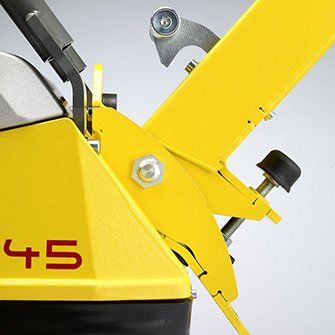

The BPU4045 achieves high productivity due to the increased compaction force and fast forward and reverse travel. It is an all-around versatile plate for all job sites that place high demands on the machine's performance potential. It also has a greater standard of operator comfort and a long service life. It is especially suitable for the compaction of building back-fill, as well as frost and sub-bases when building roads, paths, and parking lots. The BPU4045's 69 Hz frequency makes it suitable for all applications and reliably compacts even medium-weight interlocking paving stone.
Intuitive guide handle design: The operator changes the direction of travel and speed simply by moving the handle forwards and backwards.
Comprehensive comfort features: e.g. low oil shut off and maintenance-free alternator.
Infinitely variable forward and reverse operation including spot compaction for easy maneuverability. Ideal for trenches and over large areas.
The large gasoline engine with its high reserve capacity ensures great efficiency and a long service life.
The BPU4045 is equipped with a recoil starter. Different extension plates provide a variety of operating widths.
VERY LOW HAND-ARM VIBRATIONS
The particularly designed Wacker Neuson guide handle provides a hand-arm vibration of under 2.5 m/s².
This allows for an all-day continuous operation without impairment and risk to the user.
All documentation requirements are omitted if an operator only works with equipment that has acceleration values below 2.5 m/s².
| WACKER NEUSON BPU4045 | |
|---|---|
| Operating data | |
| Operating weight | 710 lb |
| Centrifugal force | 8,992 lbf |
| Base plate size (W x L) | 17.7 x 35.4 in |
| Base plate thickness | 0.5 in |
| Height (without guide handle) | 28.5 in |
| Operating width (without extension plate) | 17.7 in |
| Operating width (with extension plate) | 24 in |
| Frequency | 69 Hz |
| Advance travel max. (depending on soil and environmental factors) | 78.7 ft/min |
| Surface capacity max. (depending on soil and environmental factors) | 9,300 ft²/h |
| Engine / Motor | |
| Engine / Motor type | Air-cooled single-cylinder, four-cycle gasoline engine |
| Engine / Motor manufacturer | Honda |
| Engine / Motor | GX 270 |
| Displacement | 16.5 in³ |
| at rpm | 3,600 rpm |
| Operating performance max. (DIN ISO 3046) | 8 hp |
| Operating performance (DIN ISO 3046) | 6.2 hp |
| at rpm | 2,600 rpm |
| Fuel consumption | 0.42 US gal/h |
| Tank capacity (fuel) | 5.6 US qt |
| Power transmission | From drive motor via centrifugal clutch and V-belt direct to exciter. |
| CO2 (NRSC) * | 762 g/kW-hr |
